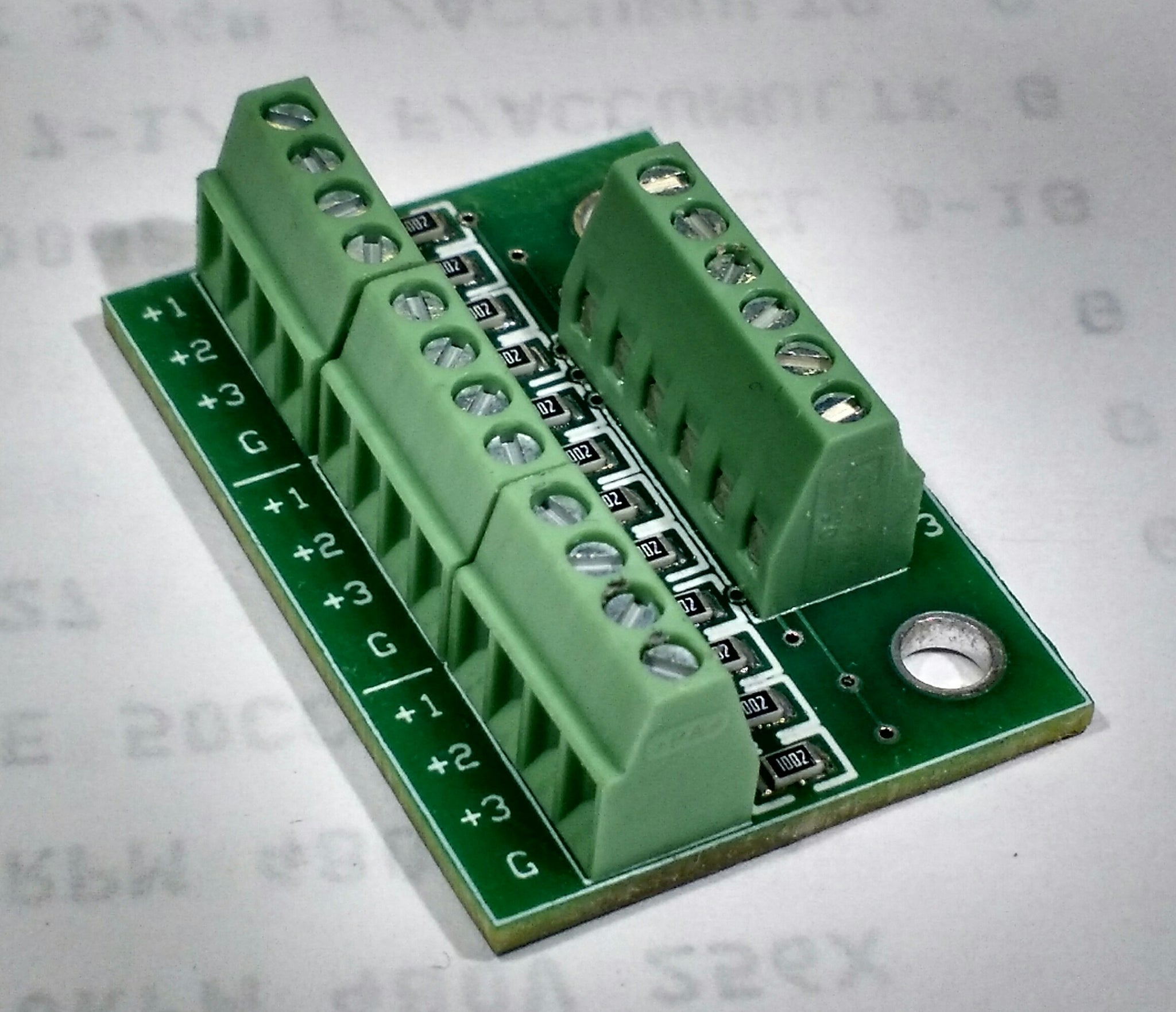

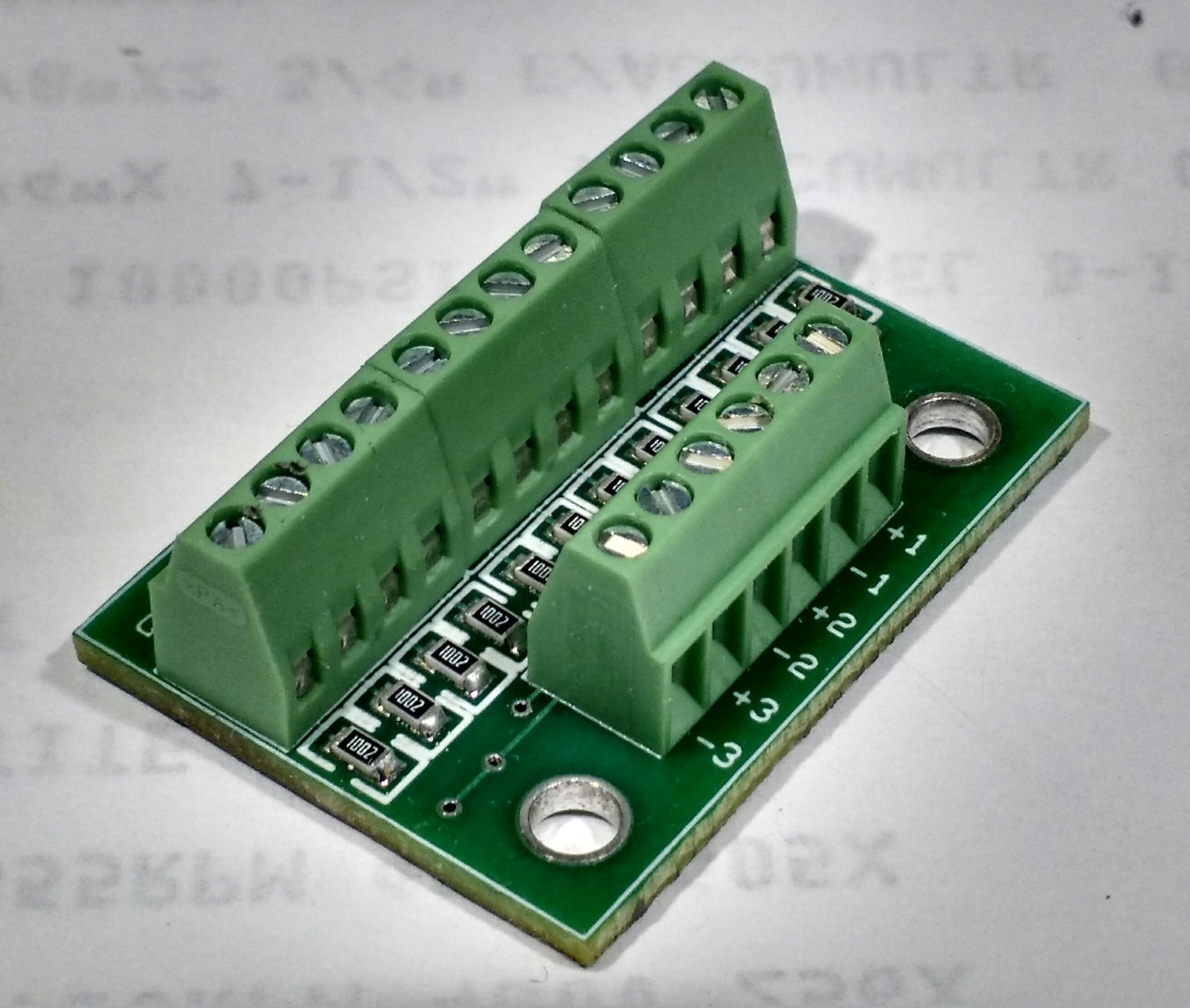

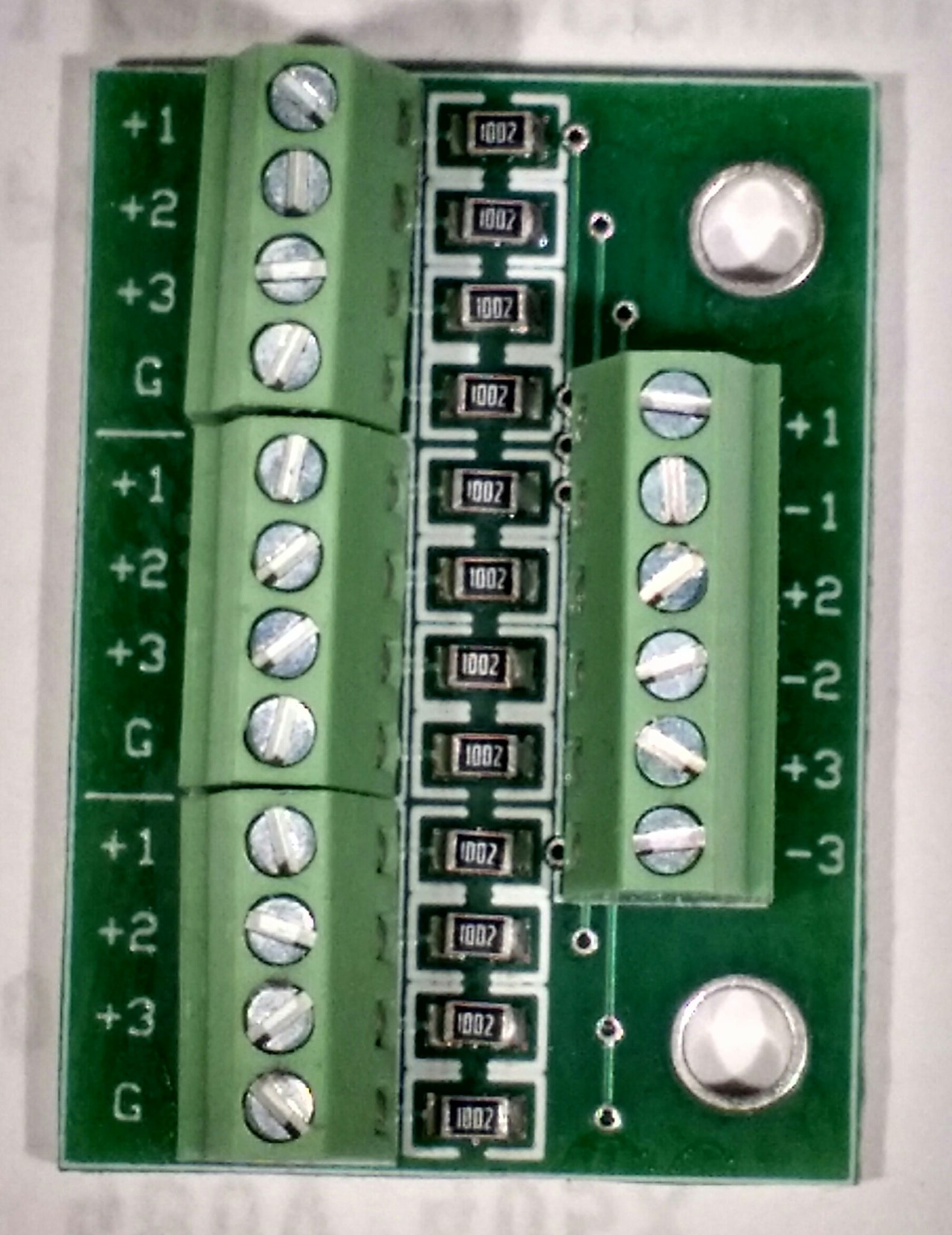

This PCB allows input voltage from 3 galvanic oxygen sensors with signal distributed out to up to three independent ppO2 displays. 10k resistors placed on the + to maintain secondary displays in the event a display failure. All grounds are common. Board includes header terminals for ease of wire connections, no soldering required.
Boards can be used bare inside of breathing loop, though recommend conformal coating. Boards can also be housed or potted. Please contact us for custom integration work.
